Back-lit Acrylic Channel Letters

Backlit acrylic channel letters needn't be off the wall, LED light shines onto the wall through the translucent acrylic sign border near the back-panel, creating a halo effect. Each letter is individual and can be lit individually, with the excellent 3D halo and amazing display effect, widely used for business, store, building, storefront, shop, outdoors & indoors.

About Back-lit Acrylic Channel Letters

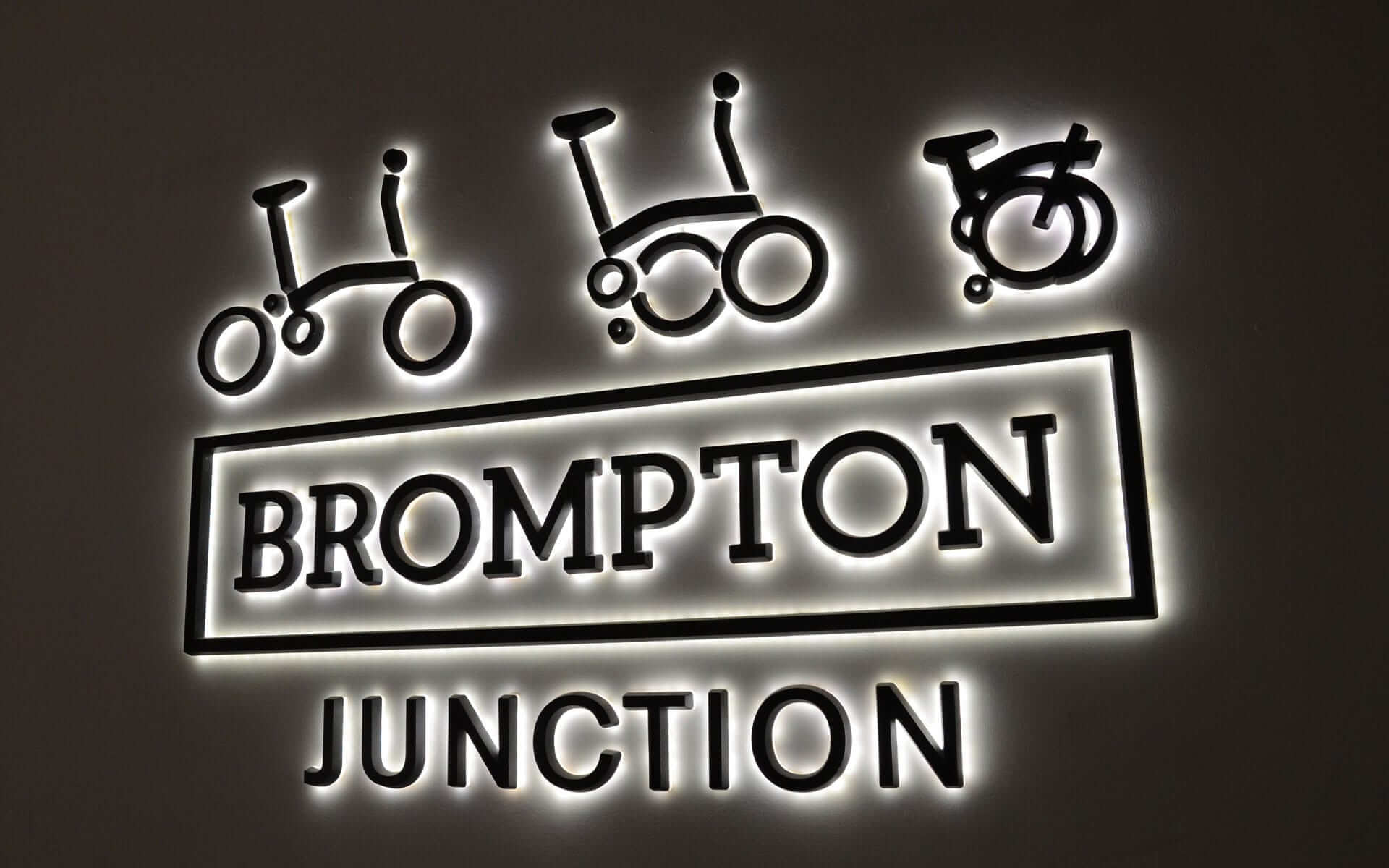

Sample case

Back-lit Acrylic Channel Letters
  • Back-lit acrylic channel letters require a power source so that the LED light source can provide good light. Although solar energy and wind energy are used by more and more users due to their green characteristics, when used as power sources for illuminated signs, these green energy sources need to be matched with energy storage batteries to ensure the stability of the current. Therefore, the stability and cost of this kind of power supply will all be worse than the mains power. Therefore, we recommend using mains power. Whether it is civilian AC or industrial AC, it will be more stable.
  • The vast majority of LEDs are driven by safe 12V DC power. Therefore, if the mains power is used as the power supply, the AC transformer is required to convert the AC power into the 12V DC power required for LED operation. Therefore, it is recommended that before purchasing, you first understand the voltage of the AC power at the place where the backlit channel letters will be installed, so that we can provide you with a suitable AC transformer.
  • In order to reduce line loss, we recommend that the length of the wire from the signage to the AC transformer be controlled to 3 meters (about 118 inches), otherwise the LED may not fully emit light due to excessive current loss.
  • The AC transformer will generate heat when working, it is recommended that the AC transformer be placed in a place with good heat dissipation. If the AC transformer cannot dissipate heat smoothly, the service life of the transformer will be seriously affected.
  • The installation of back-lit channel letters usually requires drilling holes in the wall, so it is recommended that you confirm with the landlord what restrictions there are on drilling holes before purchasing.
  • Some cities, communities and landlords have certain restrictions on the brightness and color temperature of illuminated signs, so it is recommended that you understand these restrictions before purchasing.


  • Can be letters, numbers and logo.
  • Each individual part is separate.
  • Using CNC engraved acrylic 3D letters shell.
  • LEDs are installed in the letters shell as light source.
  • The front of the signs and the acrylic border near the front are covered with paint to make them opaque.
  • The acrylic border near the back-panel is not covered with paint, allowing light to pass through and shine on the wall.
  • Need not to off the backing wall.
  • Can be used indoors or outdoors.

Tech details

The Min. width of the strokes
The Min. height of the letters
3.15"(80mm) for indoor signs and 3.94"(100m) for outdoor signs
Default thickness
Production time
In 15 working days by default
Need not to be off the backing wall
  • Too small letters have limited space in the signs shell, causing too hard to place the LED lights evenly, unless using PCB LED, which fit for the mass production only.
  • Backlit acrylic channel letters are not suitable for very large letters. Due to limitations in raw materials and processing techniques, if too large letters are made into backlit acrylic channel letters, it will cause problems with uniform illumination due to insufficient thickness; and due to the volume of processing of CNC engraving is too large, which leads to a sharp increase in costs.


One set of backlit acrylic channel letters consist of the following components:

  • Acrylic letters shell
  • LEDs
  • Back-panel
  • Cables
  • AC transformer

Acrylic letters shell

CNC engraving
Default thickness
Surface finishes
  • Gloss powder coat paints
  • Semi-gloss powder coat paints
  • Matte powder coat paints
  • Metallic paint
  • Front surface and return near the front surface of the letter shell will be painted/powder coated so that these parts will not transmit light, and the return near the back panel of the letters will not be painted so that the light can pass through.
  • The CNC engraved acrylic letter shell can be made with arc chamfer or bevel chamfer, so that the letter shell has a special three-dimensional effect.


LED type
LED module, LED strip, PCB LED
More than 100,000 hours
Lighting color
  • White (about 6000k color temperature)
  • Warm white (about 4000k color temperature)
  • Red
  • Blue
  • Green
  • Yellow
  • Orange (RGB)
  • Pink (RGB)
  • Purple (RGB)
  • Addressable RGB/RGBW LEDs
  • Using the BlueView brand LED by default. Also have Cree brand LED.
  • For the outdoor signs we will use the water-proof LED lights.


Laser cutting
  • The back panel would be painted/powder coated in white and using screws to fix on the acrylic 3D letter shell.
  • LED would be installed on it by default.


Plenum copper wire by default
1.5mm2 (AWG 16) by default
Default Length
60cm (23.62")
  • Suggest using 2.5mm2 (AWG 14) for the trunk wire at least.
  • Trunk wire would not be provided by default.

AC transformer

Mean Well
waterproof or non-waterproof
110v~240v AC
12v DC
  • The waterproof AC transformers are using MeanWell brand LPV-60V-12 default, IP67, -30~70℃ wide operation range.
  • The Non-waterproof AC transformers are using LRS Series by default, 300VAC input surge, 5G vibration, 70℃ operations.


Most of the installation methods of backlit channel letters are flush mount, off-wall mount or raceway mount, using stud bolts to install the signs on the wall.

  • Flush Mount: This installation method uses stud bolts and is installed separately on the building facade using the mounting holes. The wires used to power the lighting are fished out of the wire holes and mounted behind the wall so light source maintenance can be easily done from behind. Typically, each individual illuminated sign part has 2-3 stud bolts and 1 wire, so 3-4 holes need to be drilled in the wall for this. Obviously, this installation method will increase the installation workload, but since the wires and stud bolts are buried in the wall, the installed signs will be sleek and sophisticated.
  • Off-wall Mount: The only difference between this installation method and flush mount is that the sign is away from the backing wall, and spacers are used to ensure that each part is at the same distance from the wall.
  • Raceway Mount: In this installation method, the sign is first mounted on a slender metal mounting structure called a "raceway", usually made of aluminum or stainless steel, and then the raceway and signs are mounted on the wall as a whole. The interior of these mounting structures can be used to house electrical wiring and AC transformers. The advantage of this type of installation method is that it has fewer holes need to be drilled, which can be an important consideration for building owners or landlords, and it also makes it easier to install and renew the signage, while creating an off-wall visual for the sign, so the three-dimensionality will be better. However, due to the existence of the "raceway", the integrity of the sign and installation wall will be weakened.

To ensure your signage is installed correctly for optimal display and longevity, we recommend hiring professional installers. We will provide a 1:1 layout template to show the hole positions of stud bolts and wires, the installer will drill holes on the wall according to these hole positions. If it is an illuminated sign, the wiring work of the wires needs to be completed. We will provide installation instructions, wiring diagram and necessary installation accessories to help your installers complete the installation correctly and quickly. If you are unable to find the professional installers, please let us know and we will put you in touch with one of our partners to find good installers for you.


Recommended working temperature
-20℃ ~ +50℃ (-4℉ ~ +122℉)
Default IP rating for outdoor use
Three Years
  • stud bolts
  • nuts
  • washers
  • tube spacers
  • 1:1 layout template
  • wiring diagram
  • installation diagram
  • The recommended working temperature means that based on our experience, the sign can keep working within this temperature range for a long time without significantly reducing the service life. Generally speaking, illuminated LED signs can work in a wider temperature range, usually -30℃ ~ +70℃ (-22℉ ~ +158℉) but the harsher environment will shorten the service life of the signs.
  • Stud bolts are necessary for installation, used to fix the signs on the backing wall.
  • Nuts and washers are only fit for situations where people can work at the other side of the backing wall, then can use washers and nuts to secure the stud bolts to the wall.
  • If you need the backlit acrylic channel letters off the backing wall, we will provide the stainless steel tube spacers with 20mm (0.8") length by default, electrical wiring and stud bolts can through the tube spacers, used to make all the individual part of the backlit acrylic channel letters have the same distance between the backing wall.


  • In three years, if it is not the man-included damage, we will send you the damage part.
  • After 2 years, because of the half-life, the LED lighting would be weaker. In order to keep the effect of the signs, we suggest changing the LED lights when you feel the brightness could not reach your requirement.
