Side-lit Channel Letters

Side-lit Channel Letters have 3D acrylic letters shell with LED inside, the light shines through the border of the letters shell onto the wall, creating a halo effect. Each letter is individual and can be lit individually, with the excellent 3D halo and amazing display effect, widely used for business, store, building, storefront, shop, outdoors & indoors.

About Side-lit Channel Letters

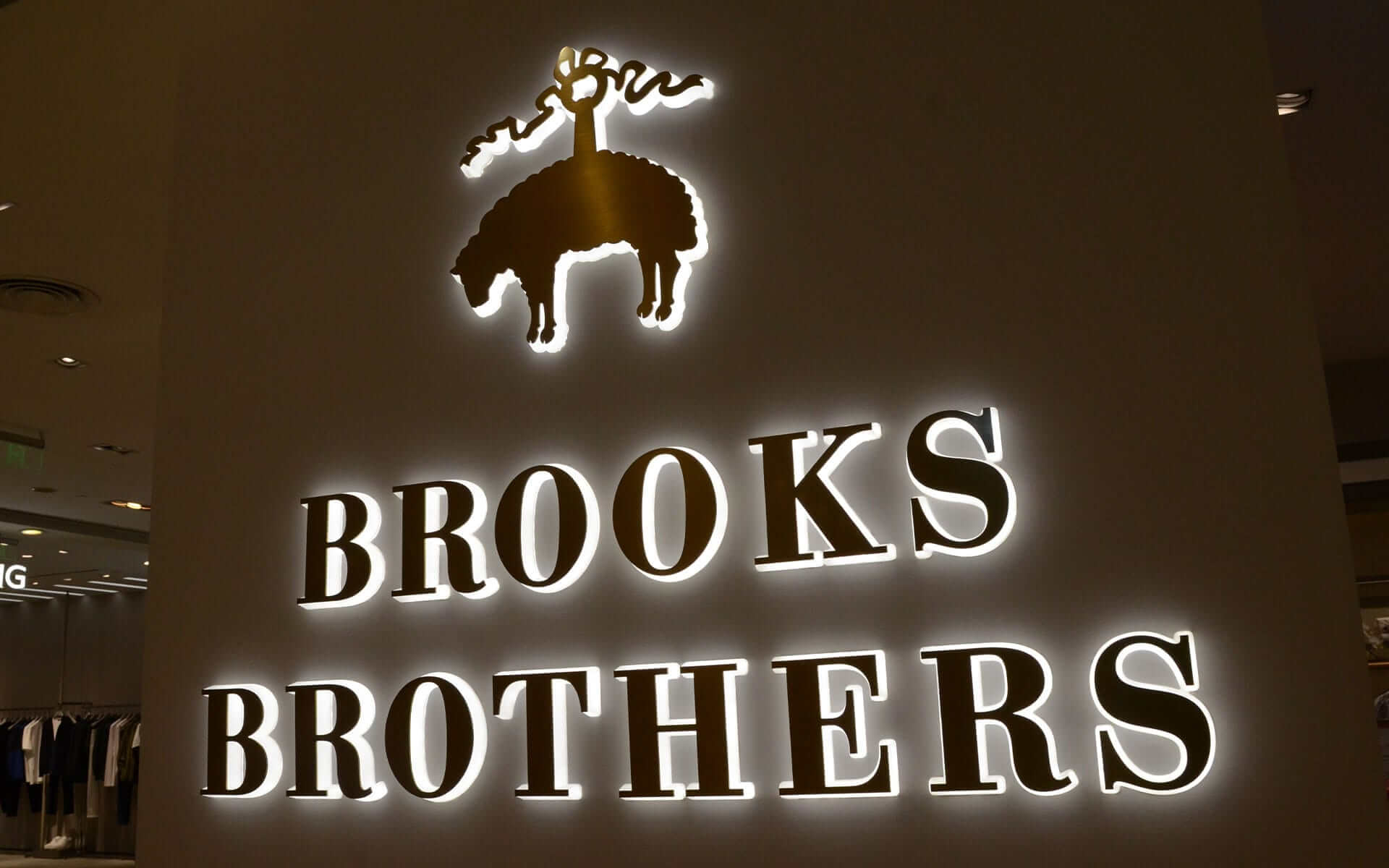

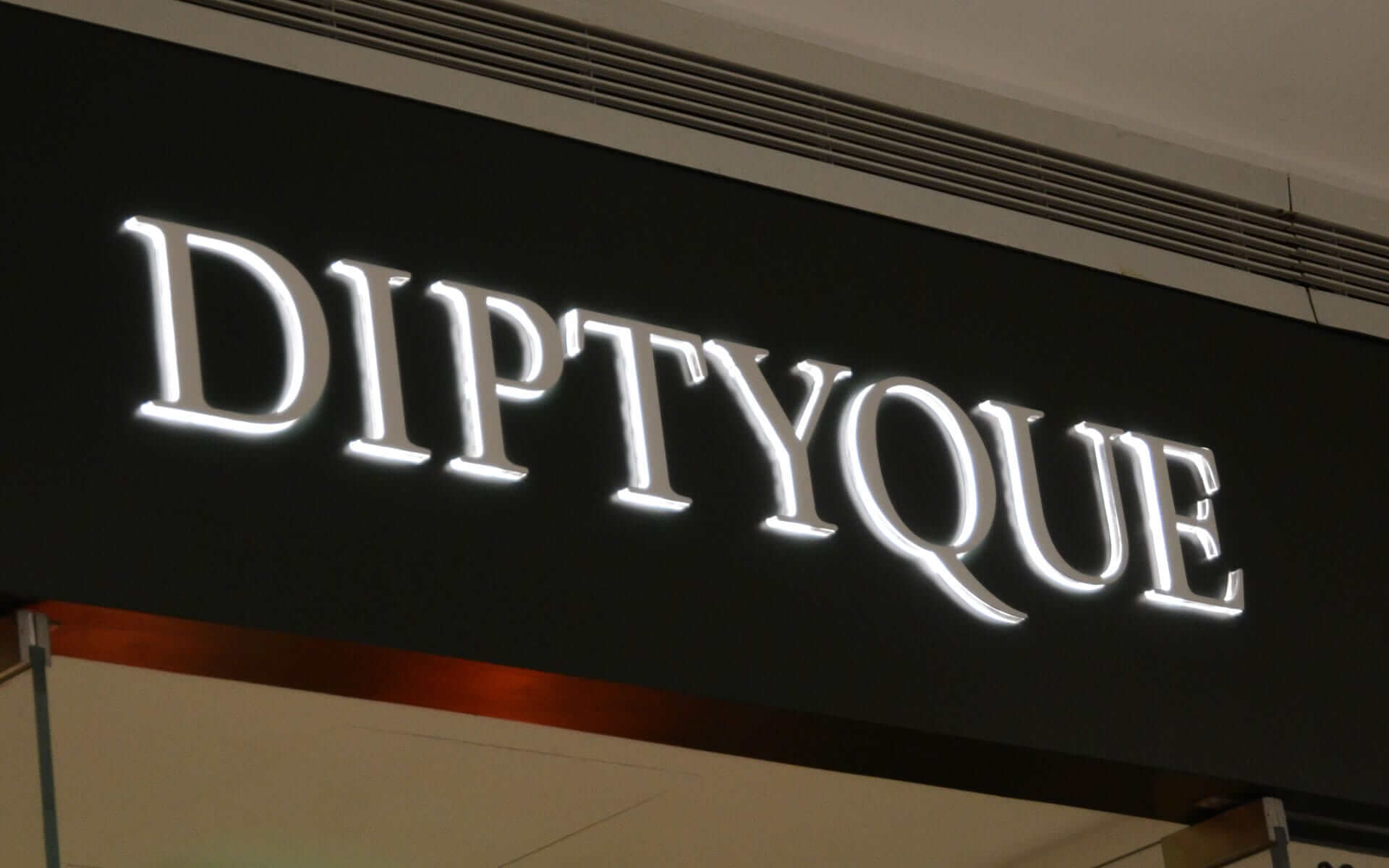

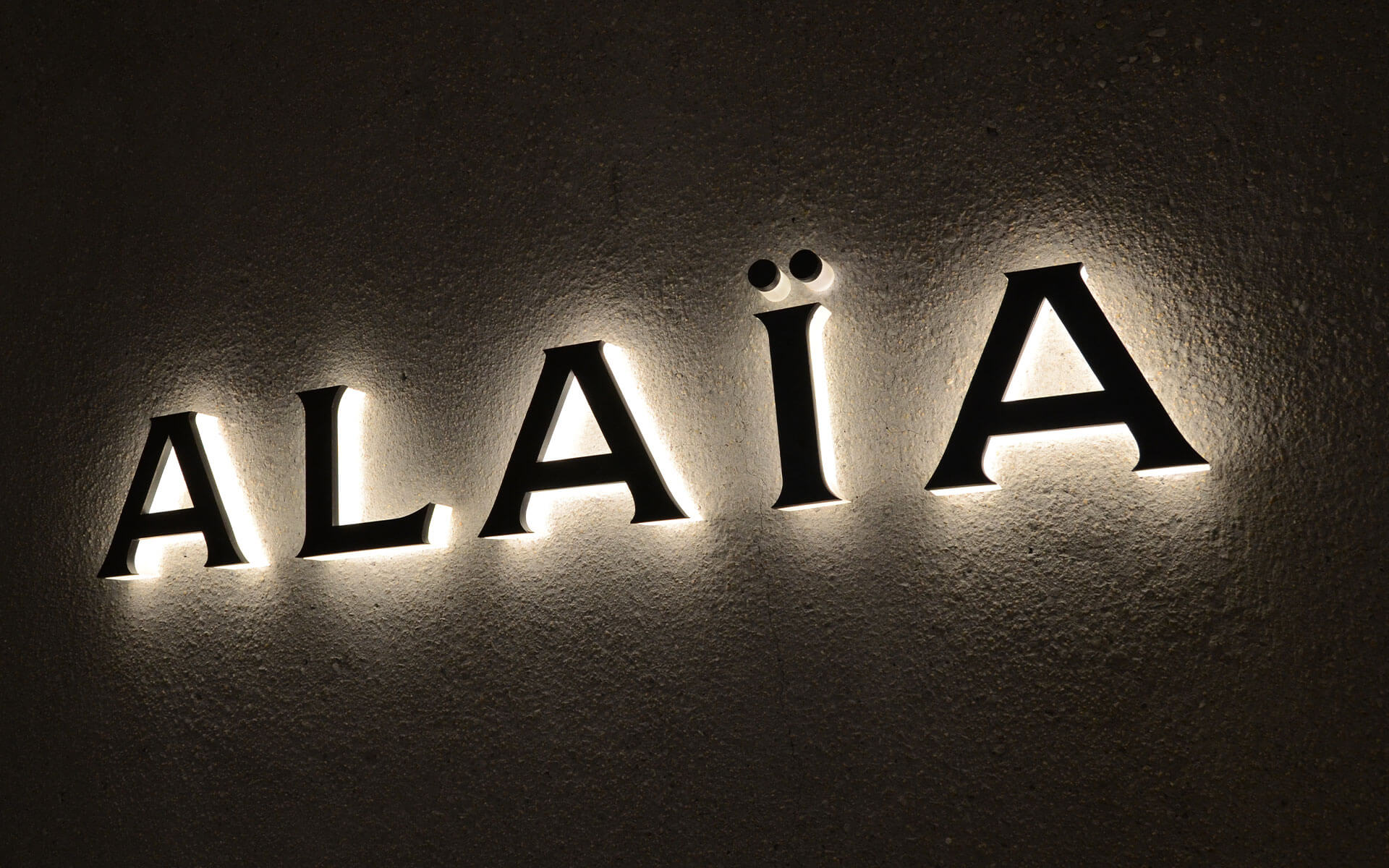

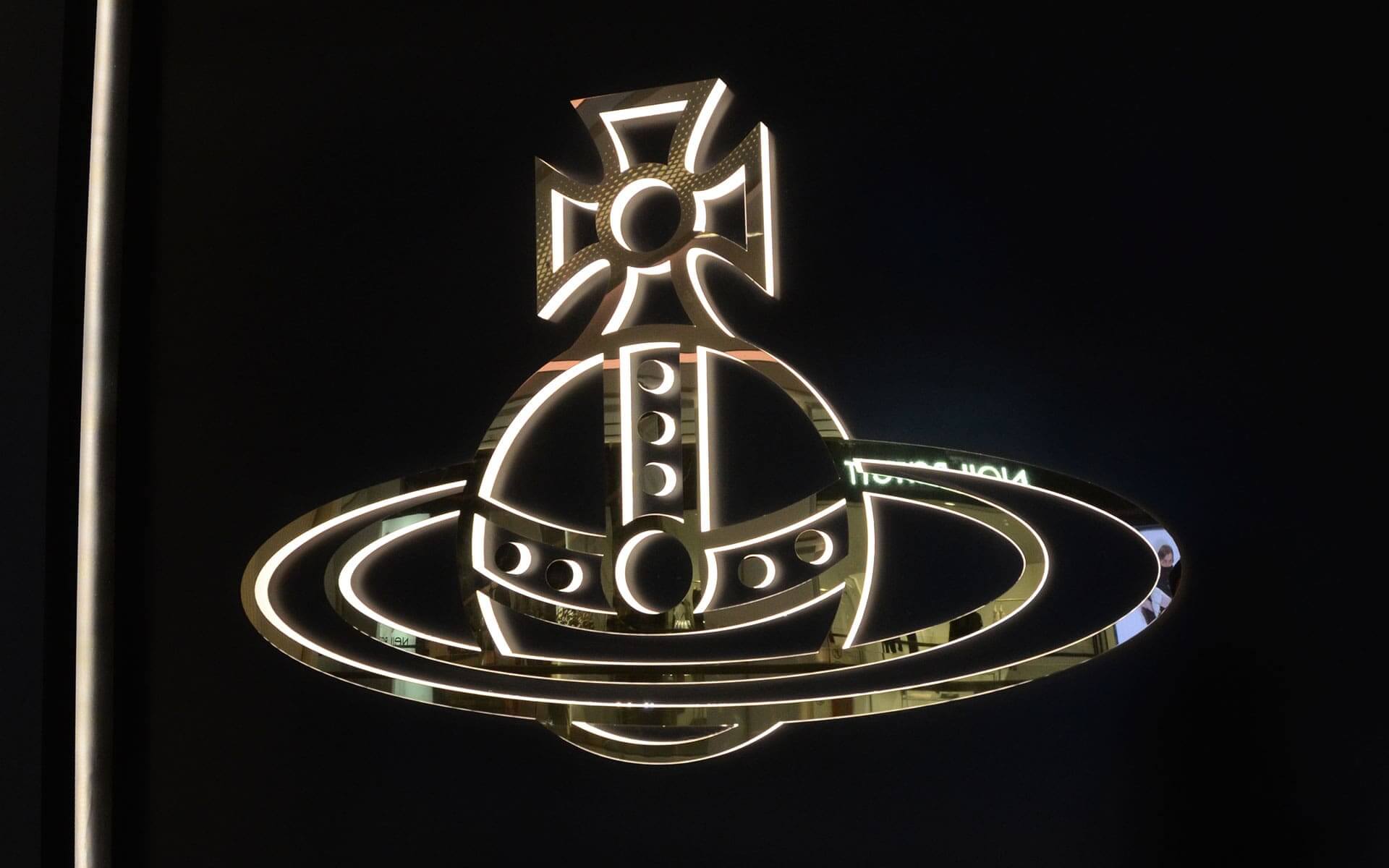

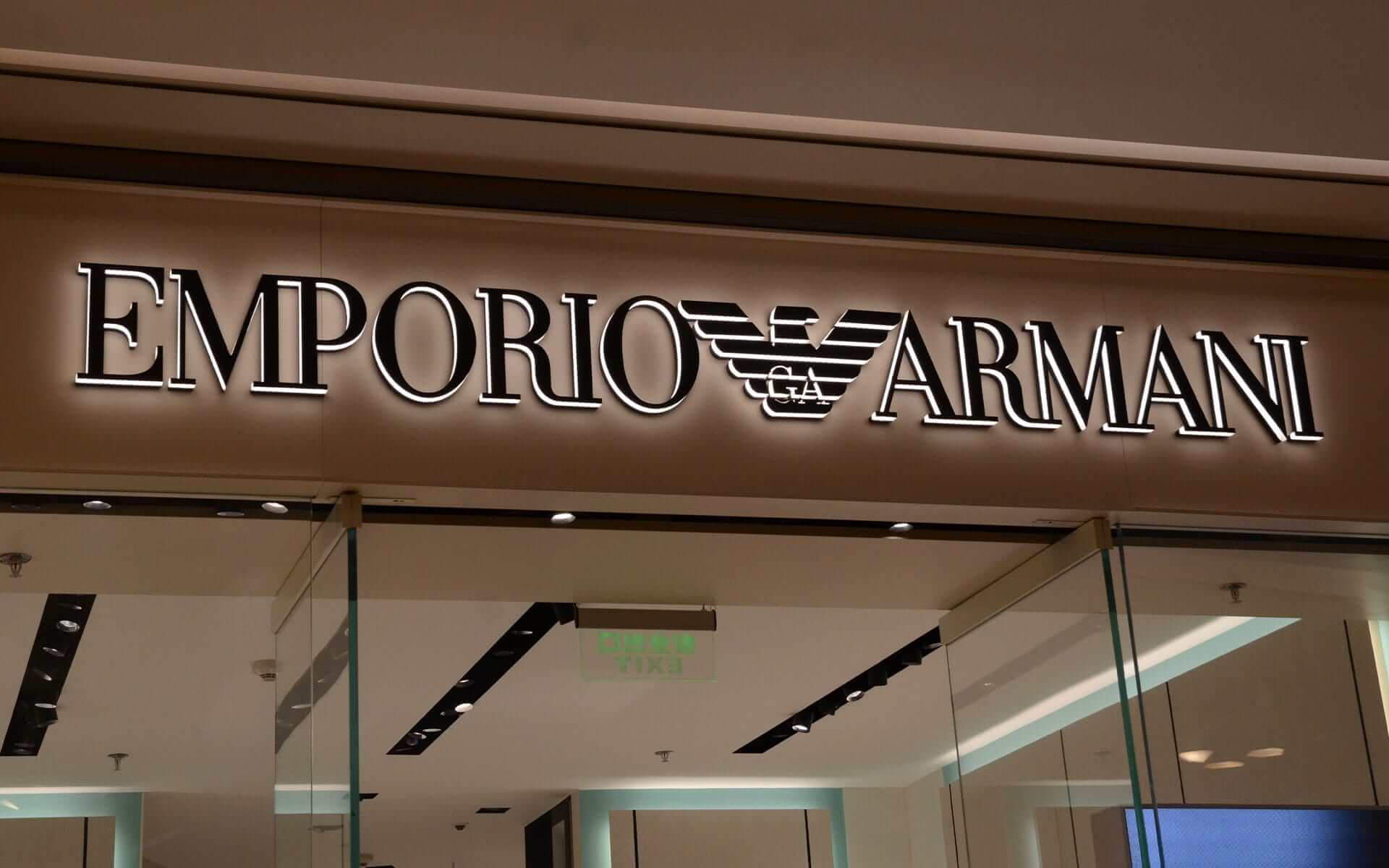

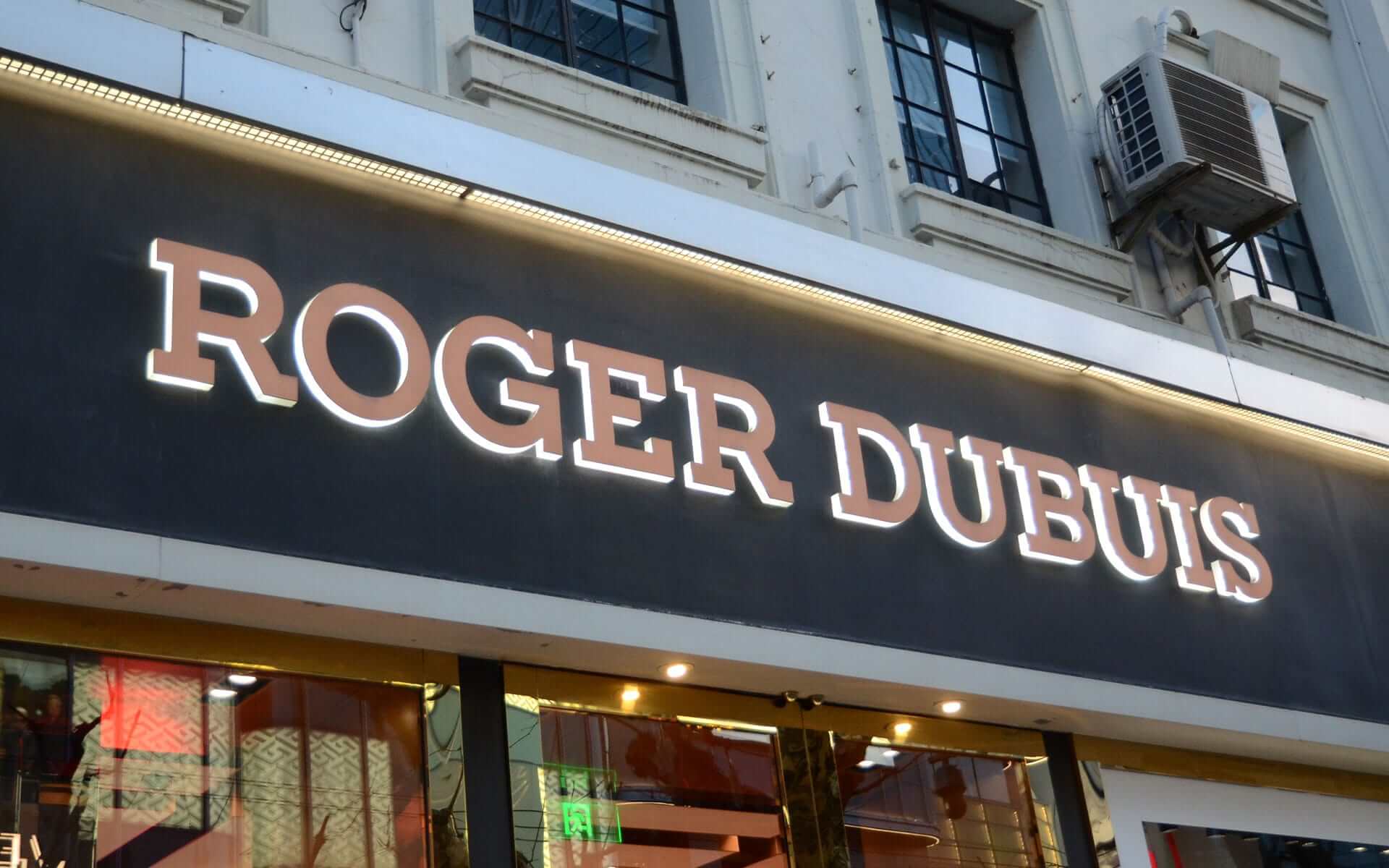

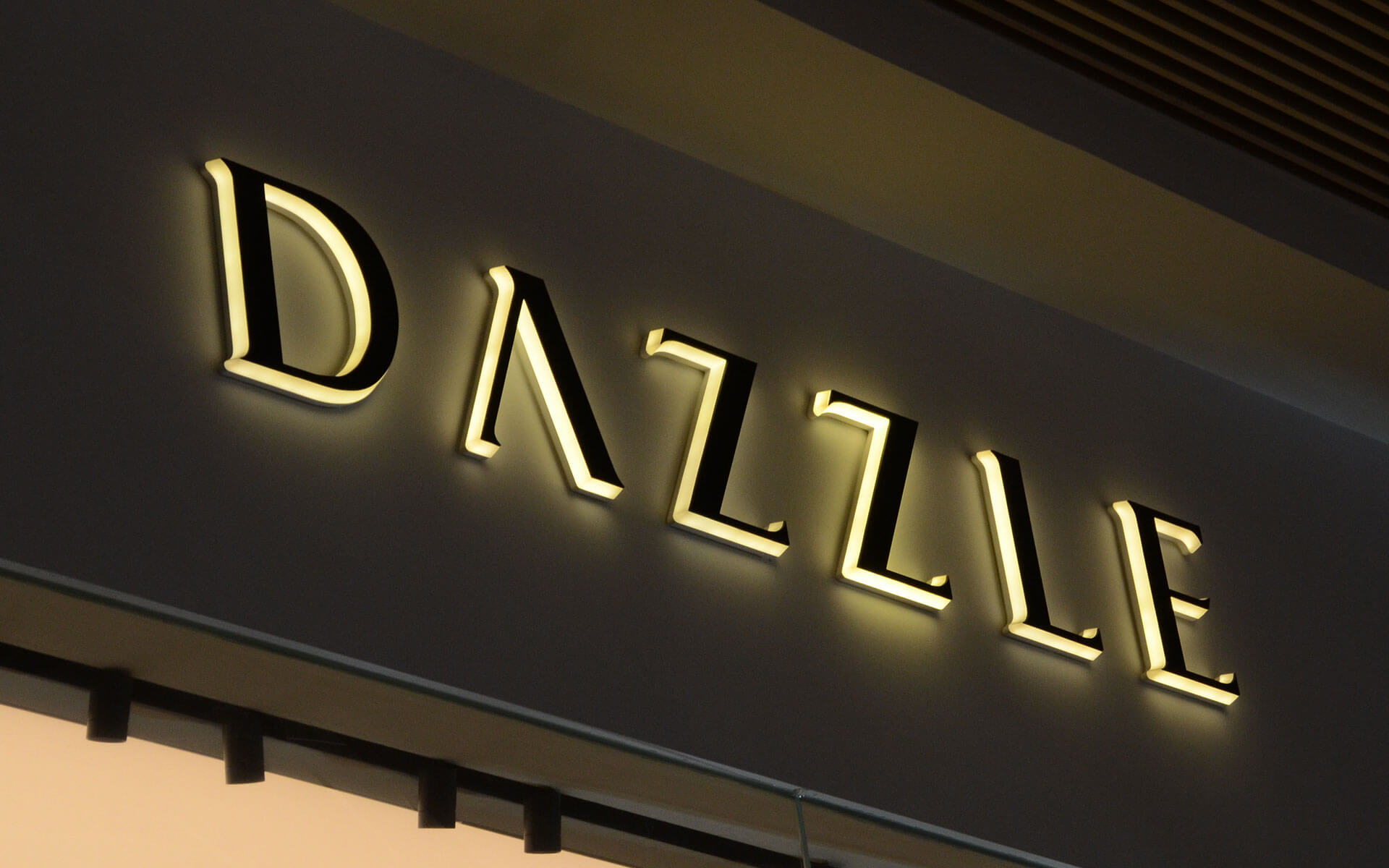

Sample case

Side-lit Channel Letters
  • Side-lit Channel Letters have the similar display effects of Pro Back-lit Metal Channel Letters. The main difference is that the former uses a solid non-luminous front surface, which is attached to the acrylic letters shell, while the latter uses a fabricated metal letters shell, and the acrylic-back panel is half-buried in the metal character casing.
  • Side-lit channel letters require a power source so that the LED light source can provide good light. Although solar energy and wind energy are used by more and more users due to their green characteristics, when used as power sources for illuminated signs, these green energy sources need to be matched with energy storage batteries to ensure the stability of the current. Therefore, the stability and cost of this kind of power supply will all be worse than the mains power. Therefore, we recommend using mains power. Whether it is civilian AC or industrial AC, it will be more stable.
  • The vast majority of LEDs are driven by safe 12V DC power. Therefore, if the mains power is used as the power supply, the AC transformer is required to convert the AC power into the 12V DC power required for LED operation. Therefore, it is recommended that before purchasing, you first understand the voltage of the AC power at the place where the side-lit channel letters will be installed, so that we can provide you with a suitable AC transformer.
  • In order to reduce line loss, we recommend that the length of the wire from the signage to the AC transformer be controlled to 3 meters (about 118 inches), otherwise the LED may not fully emit light due to excessive current loss.
  • The AC transformer will generate heat when working, it is recommended that the AC transformer be placed in a place with good heat dissipation. If the AC transformer cannot dissipate heat smoothly, the service life of the transformer will be seriously affected.
  • The installation of side-lit channel letters usually requires drilling holes in the wall, so it is recommended that you confirm with the landlord what restrictions there are on drilling holes before purchasing.
  • Some cities, communities and landlords have certain restrictions on the brightness and color temperature of illuminated signs, so it is recommended that you understand these restrictions before purchasing.
  • The border of metal channel letters can be made of metal with regularly arranged dense holes, allowing light to shine on the wall through these holes on the sides. If you need such metal channel letters with sides illuminated, please contact us.


  • Can be letters, numbers and logo.
  • Each individual part is separate.
  • Using fabricated or CNC engraved acrylic 3D letters shell.
  • LEDs are installed in the letters shell as light source.
  • Usually use laser-cut opaque signs, such as in black acrylic or metal, affixed to the front surface of the acrylic letters shell so that the front surface of the letters does not emit light.
  • The border of the letters shell is illuminated.
  • Can be used indoors or outdoors.

Tech details

The Min. width of the strokes
0.59" (15mm)
The Min. height of the letters
3.94" (100m) for outdoor signs
Default thickness
Production time
In 15 working days by default
Flush mounting mostly.
  • Too small letters have limited space in the signs shell, causing too hard to place the LED lights evenly, unless using PCB LED, which fit for the mass production only.
  • The CNC engraved acrylic letters shell is used by default, while the fabricated acrylic letters shell is more suitable for larger letters.
  • Fabricated acrylic letters shell is troublesome to transport, even if it is carefully packaged, because acrylic is a fragile material, so it may cause damage during transportation.
  • There are also ways to use metal with regularly dense holes to make the sides of the metal letters shell, so that light can shine through these holes on the wall. Please contact us if you require this kind of side-lit signs.


One set of basic backlit metal channel letters consist of the following components:

  • Opaque front surface
  • Acrylic letters shell
  • LEDs
  • Aluminum back-panel
  • Cables
  • AC transformer

Opaque front surface

Acrylic or metal
laser cutting, painting
Default thickness
  • Can paint directly on the front surface of the acrylic letters shell or add a specific opaque graphics on the front surface of the acrylic letters shell through UV printing.
  • Black acrylic or even opaque black film can be used to make the opaque front surface.
  • Black acrylic is usually available in 0.12" (3mm) or 0.20" (5mm) thickness.
  • If metal is used, 0.06"(1.5mm) stainless steel is used by default.
  • Stainless steel is available in a variety of finishes, which you can find in our resources gallery.

Acrylic letters shell

CNC engraving or fabrication
Default thickness
  • Using CNC engraved acrylic letters shell mostly.
  • The thickness of the fabricated acrylic letters shell would be about 1.97"(50mm) at least.
  • Usually, only opal acrylic is used to make CNC engraved acrylic letters shell, because there are few thick colored acrylic sheet that can be used in this process. So have to purchase customized colored acrylic sheets, and the MOQ of this customized raw material will seriously affect the implement ability of this solution.
  • If the acrylic letters shell is required to have a specific color, fabricated color acrylic letters shell are usually used.


LED type
LED module, LED strip, PCB LED
More than 100,000 hours
Lighting color
  • White (about 6000k color temperature)
  • Warm white (about 4000k color temperature)
  • Red
  • Blue
  • Green
  • Yellow
  • Orange (RGB)
  • Pink (RGB)
  • Purple (RGB)
  • Addressable RGB/RGBW LEDs
  • Using the BlueView brand LED by default. Also have Cree brand LED.
  • For the outdoor signs we will use the water-proof LED lights.


Laser cutting
  • The back panel would be painted/powder coated in white and using screws to fix on the acrylic 3D letter shell.
  • LED would be installed on it by default.


Plenum copper wire by default
1.5mm2 (AWG 16) by default
Default Length
60cm (23.62")
  • Suggest using 2.5mm2 (AWG 14) for the trunk wire at least.
  • Trunk wire would not be provided by default.

AC transformer

Mean Well
waterproof or non-waterproof
110v~240v AC
12v DC
  • The waterproof AC transformers are using MeanWell brand LPV-60V-12 default, IP67, -30~70℃ wide operation range.
  • The Non-waterproof AC transformers are using LRS Series by default, 300VAC input surge, 5G vibration, 70℃ operations.


Most of the installation methods of side-lit channel letters are flush mount or raceway mount, using stud bolts to install the signs on the wall.

  • Flush Mount: This installation method uses stud bolts and is installed separately on the building facade using the mounting holes. The wires used to power the lighting are fished out of the wire holes and mounted behind the wall so light source maintenance can be easily done from behind. Typically, each individual illuminated sign part has 2-3 stud bolts and 1 wire, so 3-4 holes need to be drilled in the wall for this. Obviously, this installation method will increase the installation workload, but since the wires and stud bolts are buried in the wall, the installed signs will be sleek and sophisticated.
  • Raceway Mount: In this installation method, the sign is first mounted on a slender metal mounting structure called a "raceway", usually made of aluminum or stainless steel, and then the raceway and signs are mounted on the wall as a whole. The interior of these mounting structures can be used to house electrical wiring and AC transformers. The advantage of this type of installation method is that it has fewer holes need to be drilled, which can be an important consideration for building owners or landlords, and it also makes it easier to install and renew the signage, while creating an off-wall visual for the sign, so the three-dimensionality will be better. However, due to the existence of the "raceway", the integrity of the sign and installation wall will be weakened.

To ensure your signage is installed correctly for optimal display and longevity, we recommend hiring professional installers. We will provide a 1:1 layout template to show the hole positions of stud bolts and wires, the installer will drill holes on the wall according to these hole positions. If it is an illuminated sign, the wiring work of the wires needs to be completed. We will provide installation instructions, wiring diagram and necessary installation accessories to help your installers complete the installation correctly and quickly. If you are unable to find the professional installers, please let us know and we will put you in touch with one of our partners to find good installers for you.


Recommended working temperature
-20℃ ~ +50℃ (-4℉ ~ +122℉)
Default IP rating for outdoor use
Three Years
  • stud bolts
  • nuts
  • washers
  • tube spacers
  • 1:1 layout template
  • wiring diagram
  • installation diagram
  • The recommended working temperature means that based on our experience, the sign can keep working within this temperature range for a long time without significantly reducing the service life. Generally speaking, illuminated LED signs can work in a wider temperature range, usually -30℃ ~ +70℃ (-22℉ ~ +158℉) but the harsher environment will shorten the service life of the signs.
  • Stud bolts are necessary for installation, used to fix the signs on the backing wall.
  • Nuts and washers are only fit for situations where people can work at the other side of the backing wall, then can use washers and nuts to secure the stud bolts to the wall.
  • If you need the side-lit channel letters off the backing wall, we will provide the stainless steel tube spacers with 20mm (0.8") length by default, electrical wiring and stud bolts can through the tube spacers, used to make all the individual part of the side-lit channel letters have the same distance between the backing wall.


  • In three years, if it is not the man-included damage, we will send you the damage part.
  • After 2 years, because of the half-life, the LED lighting would be weaker. In order to keep the effect of the signs, we suggest changing the LED lights when you feel the brightness could not reach your requirement.
